Signposting

FAIR Signposting is the recommended mechanism to discover metadata about the object of an activity in the COAR Notify protocol. All the messages in the COAR Notify protocol are lean, focussing on referencing online resources rather than embedding (meta)data inline. This communication style, referred to as "Passing by Reference" in the COAR Notify specification, leverages the distributed nature of repositories as the single source of truth, avoiding the need to transfer data into centralized silos. Signposting is a set of typed links that can be included on platforms to direct machines to information about the scholarly objects they host. This information includes pointers to landing pages, metadata, license details, author information, and related resources.

Scholarly object

Scholarly objects are typically published on the web as a set of web resources, including a landing page (which usually serves as the detailed view of an object, providing metadata, links to full text, and related resources), one or more content resources (such as a PDF article, dataset, or presentation), and one or more metadata resources (structured metadata in formats such as OAI-DC, DataCite, RIOXX). Scholarly objects can also be associated with identifiers and related resources, such as DOI, handle, author identifiers, licenses, and type classifications.

In the COAR Notify protocol, the main topic of the Request/Offer and Announcement patterns (object.id) points to the landing page of a scholarly object, with optional additional references to specific content resources associated with it (object.ietf:item). If a platform hosting scholarly outputs (e.g., data repositories, institutional repositories, publisher platforms) implements Signposting, machines can automatically discover the relationships between these objects, their metadata, and additional identifiers and resources.

Signposts are typed links that point to resources and identifiers that constitute a scholarly object. Given the URL of a landing page, a Signpost can point to the associated content resources, metadata and identifiers. Given the URL of a content resource or a metadata resource, a Signpost can point to the landing page.

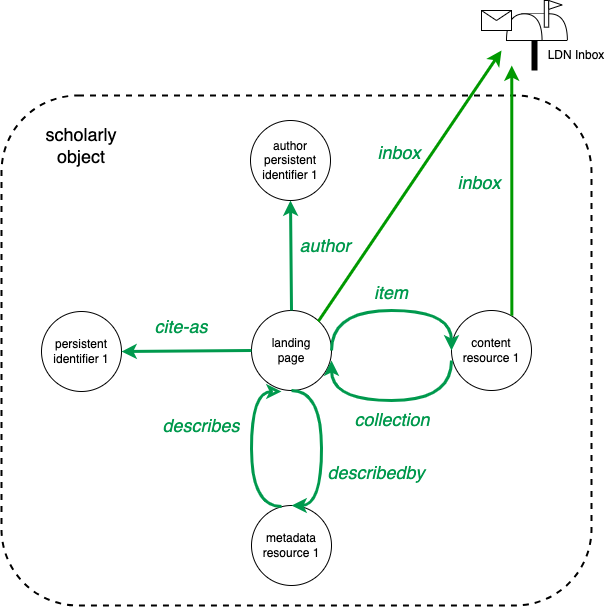

Diagram of a scholarly object with a landing page, content resource, metadata resource and two identifiers. Signposting interrelates the different parts of the scholary object with typed links.

Discovery of LDN Inboxes

A secondary role of Signposting and typed links in the COAR Notification protocol is to facilitate the discovery of LDN Inboxes. When presented with a landing page of a scholarly object or a content page, a sender of COAR Notify notifications must be able to determine the appropriate LDN Inbox URL to which the notifications should be sent.

One common approach to address this is to maintain a list of well-known URL locations of the LDN Inboxes of repositories and service providers. An alternative approach is to use Signposting and typed links that guide machines to the preferred inbox associated with a scholarly object. For this latter approach, this guide will provide a recommendation using Signposting and typed links.

Signposts are typed links that are added to resources that constitute a scholarly object. Two methods are available to provide such typed links:

  1. Provide typed links as HTTP Link headers in a HTTP response.
  2. Provide typed links as HTML <link> elements in a HTML response.

Method 1 is generally applicable for any type of Web resource. Method 2 is only applicable in case of HTML resources. COAR Notify does not recommend one method over the other. General guidelines for the two methods are briefly described below.

General remarks

Each typed link contains at least two pieces of information:

  • The URI reference of the target resource or identifier a Signpost is pointing to;
  • A Link Relation Type, that describes the relation type between the origin resource that provide the type link and the target resource.

For instance, when a platform uses Signposting to link the landing page to a metadata resource, the landing page serves as the origin, the metadata resource as the target, and the link relation type in this case is describedby.

Content and metadata resources require at least one extra piece of information:

  • The media type of the resource (such as the MIME type);
  • And, optionally, a profile to convey by means of a URI a specific format for the resource.

For instance, in case of a PDF content resource, the media type is application/pdf. In case of a metadata resource, the media type could be text/xml and the profile could describe the namespace of the metadata format (e.g. http://www.openarchives.org/OAI/2.0/oai_dc).

HTTP Link headers are added to the header HTTP responses. They have the general form of:

Link: <target-url>; rel="relation-text" ; type="link-relation-type" ; profile="profile-url"

An example of such a HTTP Link header is:

Link: <https://repo.org/metadata/123.mods> ; rel="describedby" ; type="text/xml" ; profile="http://www.loc.gov/mods/v3"

When multiple Signpost links are available, HTTP Link headers can be repeated:

Link: <target-url-1>; rel="relation-text-1" ; type="link-relation-type-1" ; profile="profile-url-1"
Link: <target-url-2>; rel="relation-text-2" ; type="link-relation-type-2" ; profile="profile-url-2"
...
Link: <target-url-n>; rel="relation-text-n" ; type="link-relation-type-n" ; profile="profile-url-n"

Repeated HTTP Link headers may also be grouped in a comma separated list:

Link: <target-url-1>; rel="relation-text-1" ; type="link-relation-type-1" ; profile="profile-url-1",
      <target-url-2>; rel="relation-text-2" ; type="link-relation-type-2" ; profile="profile-url-2",
      <target-url-n>; rel="relation-text-n" ; type="link-relation-type-n" ; profile="profile-url-n"

HTML <link> elements are added to the header of HTML responses. They have the general form of:

<link href="target-url" rel="relation-text" type="link-relation-type" profile="profile-url"/>

An example of such a HTTP Link header is:

<link href="https://repo.org/metadata/123.mods" rel="describedby" type="text/xml" profile="http://www.loc.gov/mods/v3"/>

When multiple Signpost links are available, HTTP Link headers can be repeated:

<link href="target-url-1" rel="relation-text-1" type="link-relation-type-1" profile="profile-url-1"/>
<link href="target-url-2" rel="relation-text-2" type="link-relation-type-2" profile="profile-url-2"/>
...
<link href="target-url-n" rel="relation-text-n" type="link-relation-type-n" profile="profile-url-n"/>

Remark: These HTML <link> elements also provide RDF clients with an RDF representation of typed links in the form of HTML+RDFa 1.1. This keeps our guide in line with the LDN recommendation for the discovery of LDN Inboxes.

When a platform requires serving a very large number of typed links, the Signposting specification provides the Link Set mechanism as a solution.

Implementors guide

The following section provides an overview of implementation guidelines for platforms hosting scholarly outputs and for web agents that need to retrieve metadata for scholarly objects that are the subject of COAR Notification messages.

Platforms

The COAR Notify guidelines for Signposting differentiate between the landing page, content resources, and metadata resources of a scholarly object. Guidelines for each type of resource are provided in the subsections below.

Landing page

COAR Notify recommends for each landing page of a scholarly object to provide Signposting typed links to content resources, metadata resources, persistent identifiers, author identifiers and resource type indicators.

A table with the recommended typed links follows below:

Target Link Relation Type Cardinality Comments
Content resource item 0 or more The type field is mandatory.
Metadata resource describedby 1 or more The type is mandatory, see the Signposting for an overview of common used types. For XML resources, COAR Notify recommends to use profile field to specify the URI of an XML namespace.
Persistent identifier cite-as 0 or 1 The URL is the persistent identifier for the scholarly object, such as a DOI or a Handle.
Author identifier(s) author 0 or more For each author of the scholarly object provide a persistent identifier expressed as an URI.
Resource type type 1 The fixed URL value https://schema.org/AboutPage.
Resource type type 0 or 1 The URL is a Schema.org CreativeWork that best describes the type of scholarly object.
LDN Inbox http://www.w3.org/ns/ldp#inbox 1 The URL is the location of the LDN Inbox of the COAR Notify protocol.

Content resources

COAR Notify recommends for each content resource a Signposting typed link to the landing page of the scholarly object and optionally a resource type indicator.

A table with the recommended typed links follows below:

Target Link Relation Type Cardinality Comments
Landing page collection 1 The URL is the landing page associated with the content resource.
Resource type type 0 or 1 The URL is a Schema.org CreativeWork that best describes the type of scholarly object.
LDN Inbox http://www.w3.org/ns/ldp#inbox 1 The URL is the location of the LDN Inbox of the COAR Notify protocol.

Metadata resources

COAR Notify recommends for each metadata resource a Signposting typed link to the landing page of the scholarly object.

A table with the recommended typed links follows below:

Target Link Relation Type Cardinality Comments
Landing page describes 1 The URL is the landing page associated with the content resource.

Examples

The Signposting website provides an overview of adopters, which can be used as reference and example: https://signposting.org/adopters/.

Web agents

For web agents that need to discover the metadata of the object of an COAR Notify activity, the following algorithm can be used:

  1. Resolve the URL of the web resource with a HTTP HEAD request.
  2. If a HTTP Link header with the relation describedby is available, then the URI reference of the Link header is the link to the metadata resource. End.
  3. If a HTTP Link header with the relation collection is available, then continue with step 1 with the URL reference of the Link header.
  4. If the HTTP Content-Type of the web resource is not text/html, then proceed to step 7.
  5. Resolve the URL of the web resource with a HTTP GET request.
  6. If a HTML <link> element with a rel attribute with value describedby is available, then the URL reference is the link to the metadata resource. End.
  7. No information about metadata resources is available. End.

This algorithm can be hardened by verifying in step 2 and 6 that a relation type is available with the value https://schema.org/AboutPage.

General remarks

  • COAR Notify does not recommend a singular or minimal metadata format. However, many institutional repository platforms provide an OAI-PMH interface. As such, a Signposting describedby typed link to verb=GetRecord URL are feasible for such platforms. Such a typed link could, for instance, provide OAI-DC with a type text/xml and profile http://www.openarchives.org/OAI/2.0/oai_dc.
  • COAR Notify discourages the use of Signpost links that are dynamically generated by JavaScript in the browser, such as those on client-side dynamic web pages.
  • Signposting requires machine interactions with scholarly platforms. Some measures taken by repositories to defend against malicious or badly-configured "bots" may also (perhaps inadvertently) interfere with (e.g. require CAPTCHA tests) or even prevent access from benign processes attempting to use Signposting for legitimate reasons. Care should be taken to allow unimpeded machine interaction from legitimate sources with repositories and other scholarly platforms.
Recommendation
COAR Notify workflows should use the FAIR Signposting protocol to discover related resources and LDN Inboxes.
